MDT CKYE-POD GEN3 - Compact

MDT CKYE-POD GEN3 - Compact

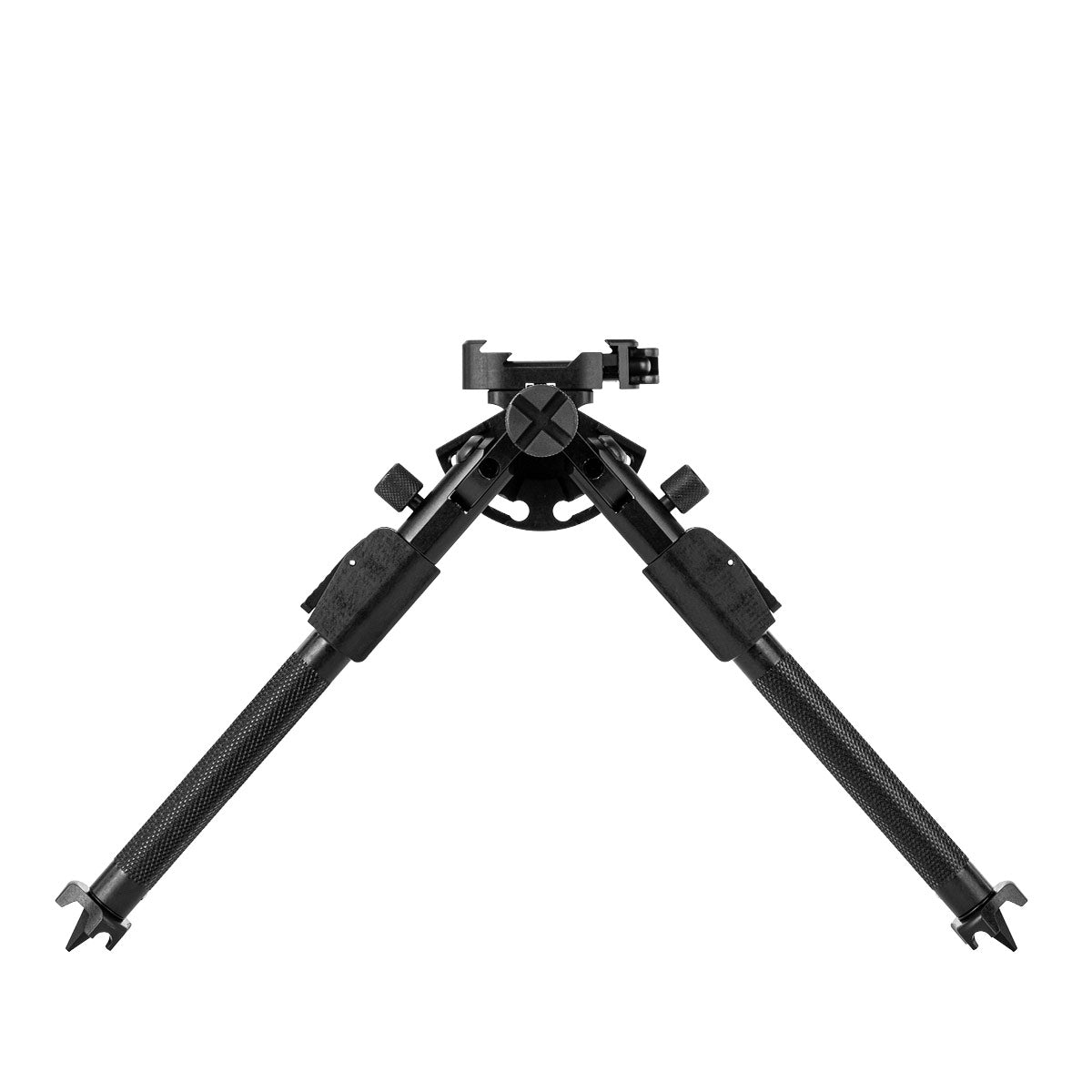

The MDT CKYE-POD GEN3 Compact is a low-profile competition bipod for tight barricade and prone positions. A 4.6" to 11.9" height range and a low stowed profile let you set up at the height the position calls for, whether you are shooting PRS Centerfire, PRS Rimfire, NRL Hunter, or NRL22.

Leg Lock Mode keeps the legs collapsed and secure until you are ready, then a slide into Rapid Deployment lets you pull both legs into position with one hand. Tool-less cant tension and up to 129.7° of splay level the rifle on uneven ground, and a panless build keeps the rifle tracking straight to the rear under recoil.

Features

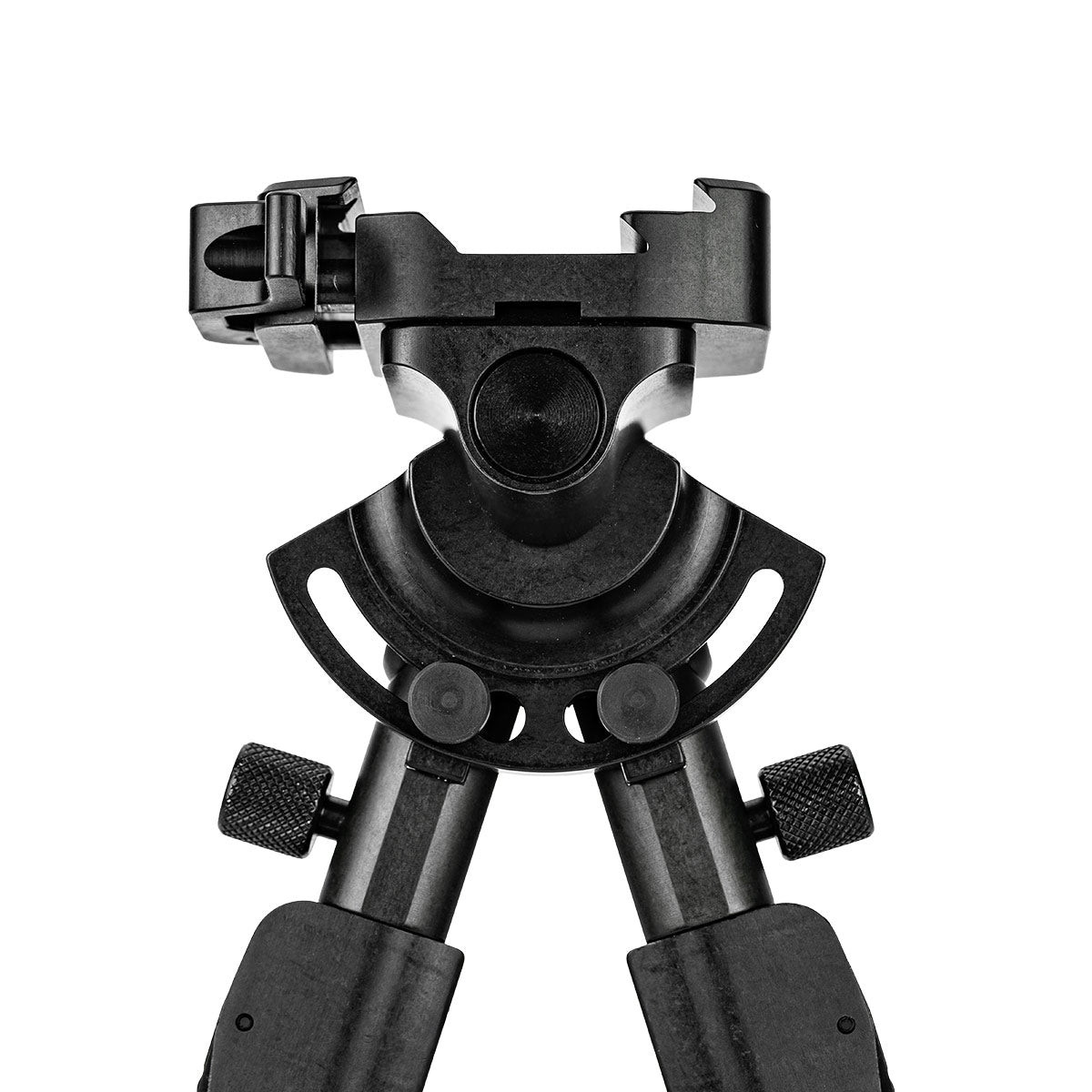

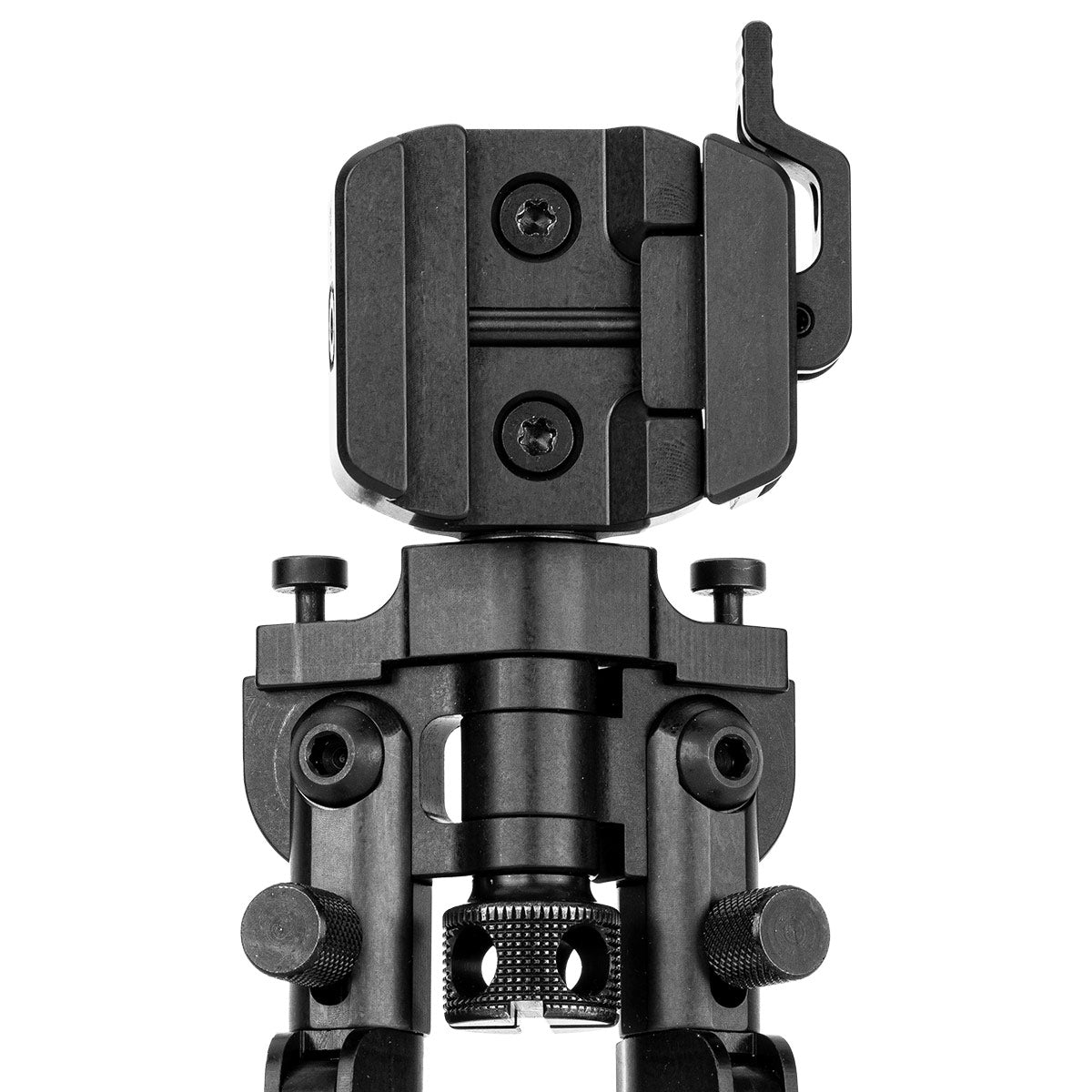

• AP Throw Lever Head: Attaches to ARCA or Picatinny rails with the same head, no swap required.

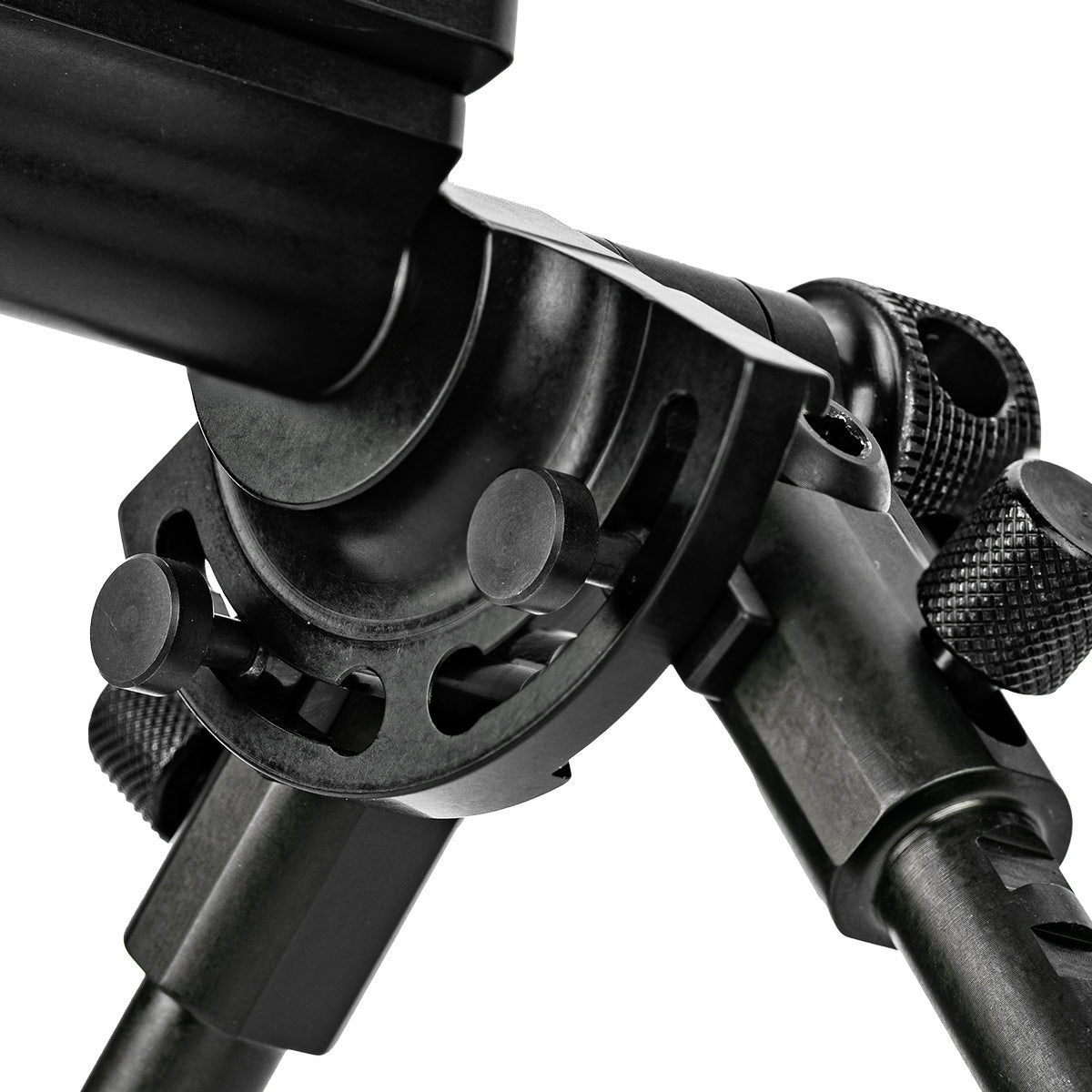

• Up to 129.7° Splay: Narrow, middle, and wide positions.
• Fully Enclosed Leg Shrouds: Keep dirt and debris out of the leg mechanism.
• Textured Leg Latches: Shaped for fast identification and control by feel.
• Single-Screw Leg Removal: Each leg detaches with one screw for field cleaning.

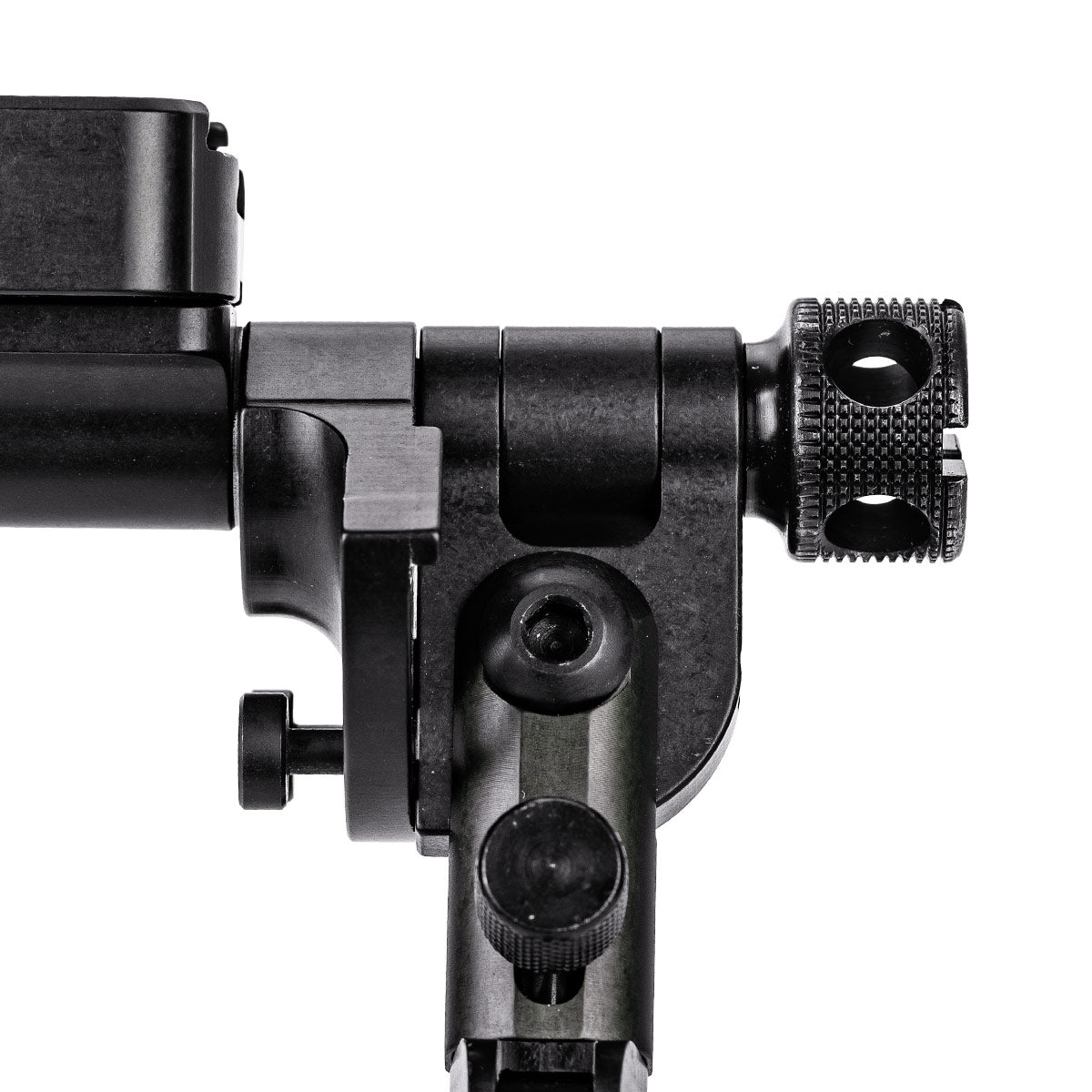

• Tool-less Cant Tension: Adjust cant tension by hand, no tools needed.
• Dual Leg Detent: Leg Lock Mode for storage or Rapid Deployment Mode for speed.

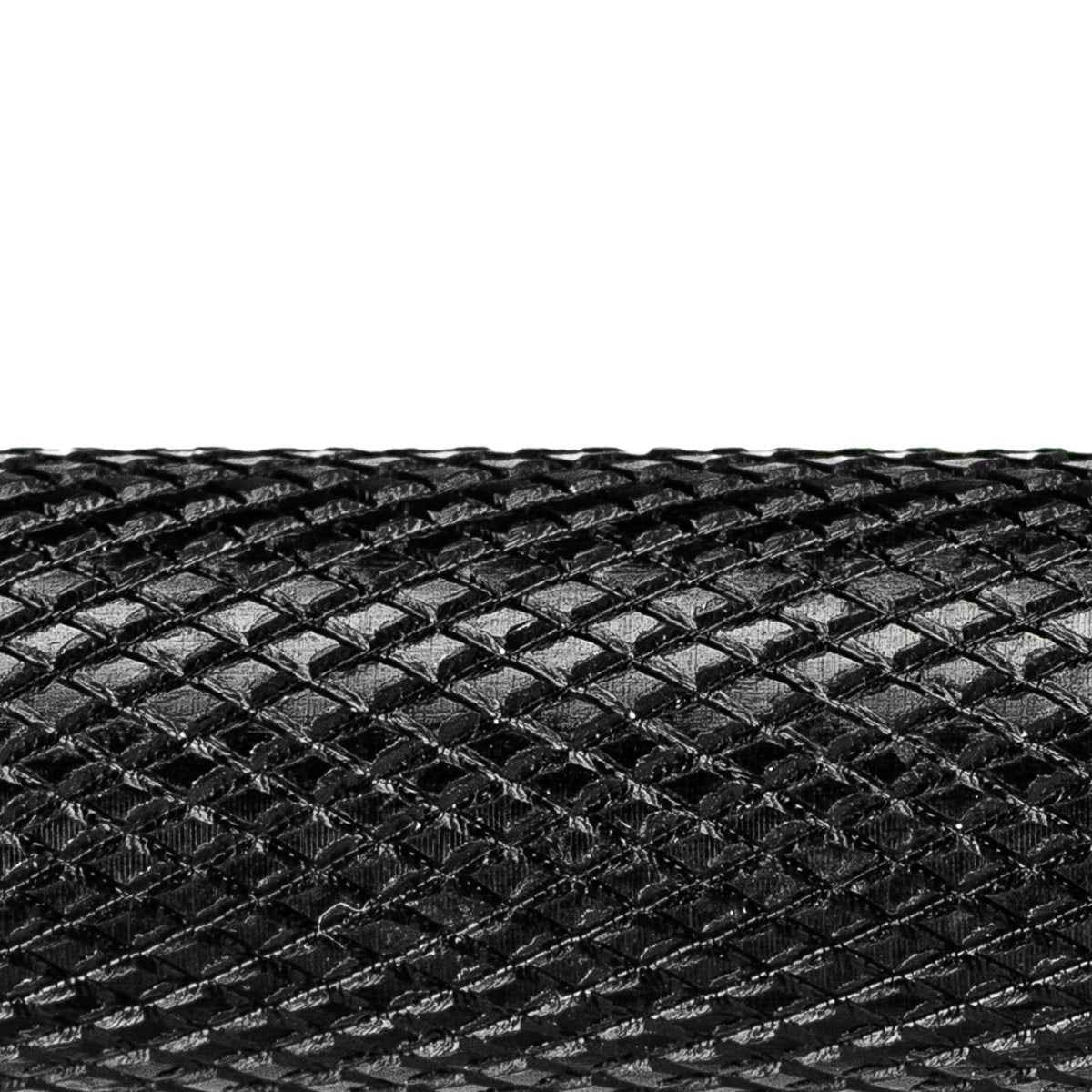

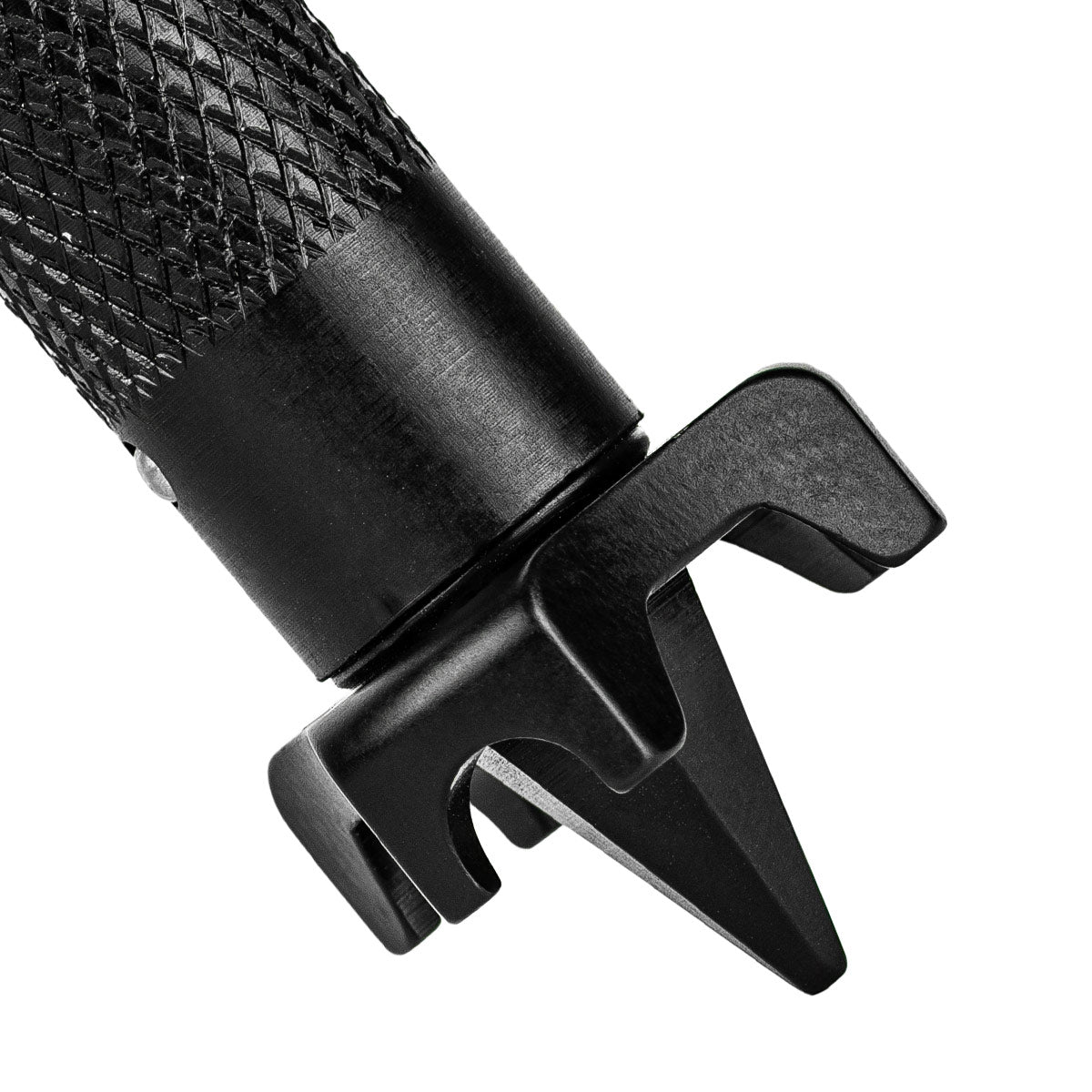

• Knurled Leg Surface: Machined directly into the legs so the grip will not peel or wear off.
• Atlas-Compatible Feet: Accepts standard Atlas-pattern bipod feet.
• Blacked-Out Finish: No polished or stainless surfaces to catch light.

Specifications

• Weight: 1.31 lb (20 oz)

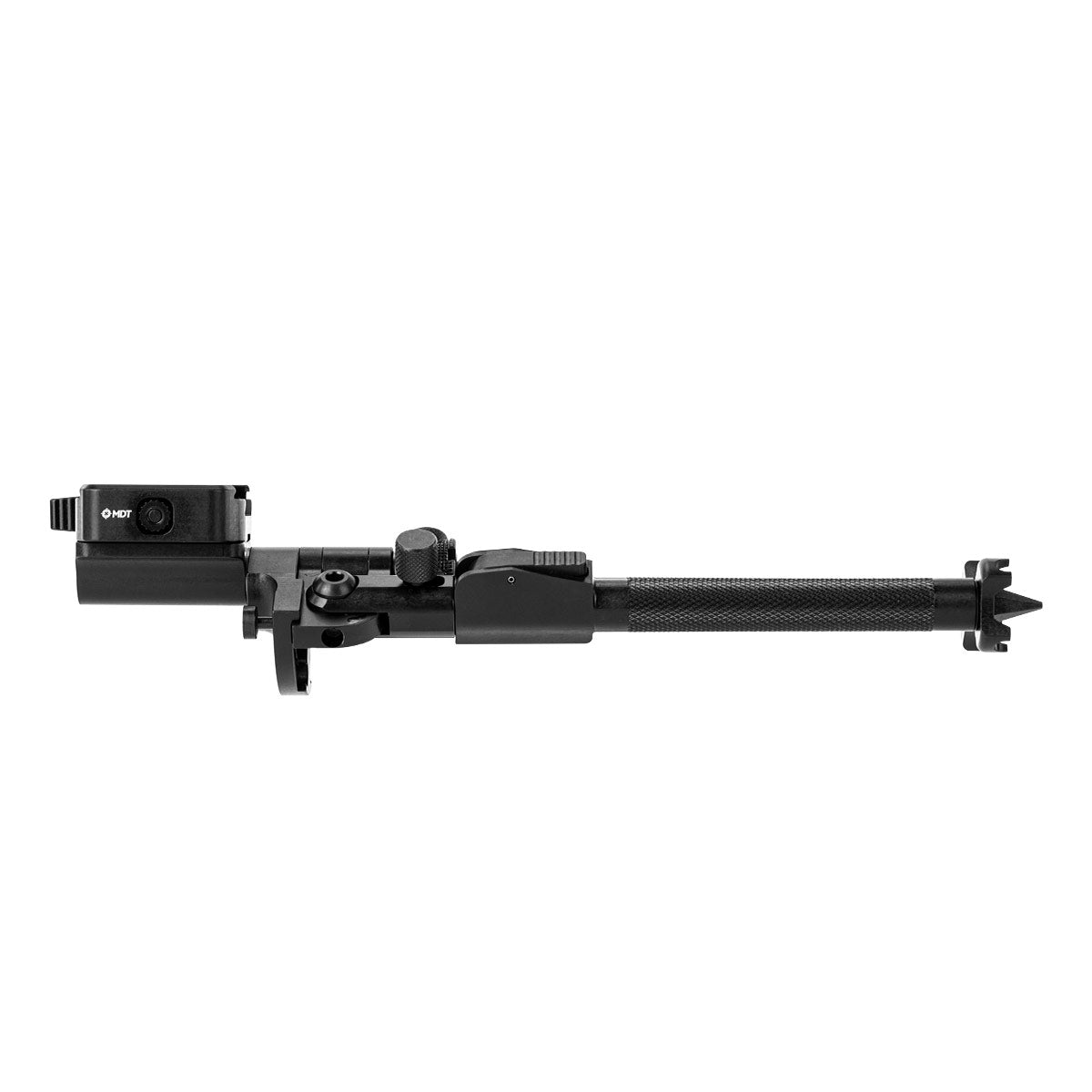

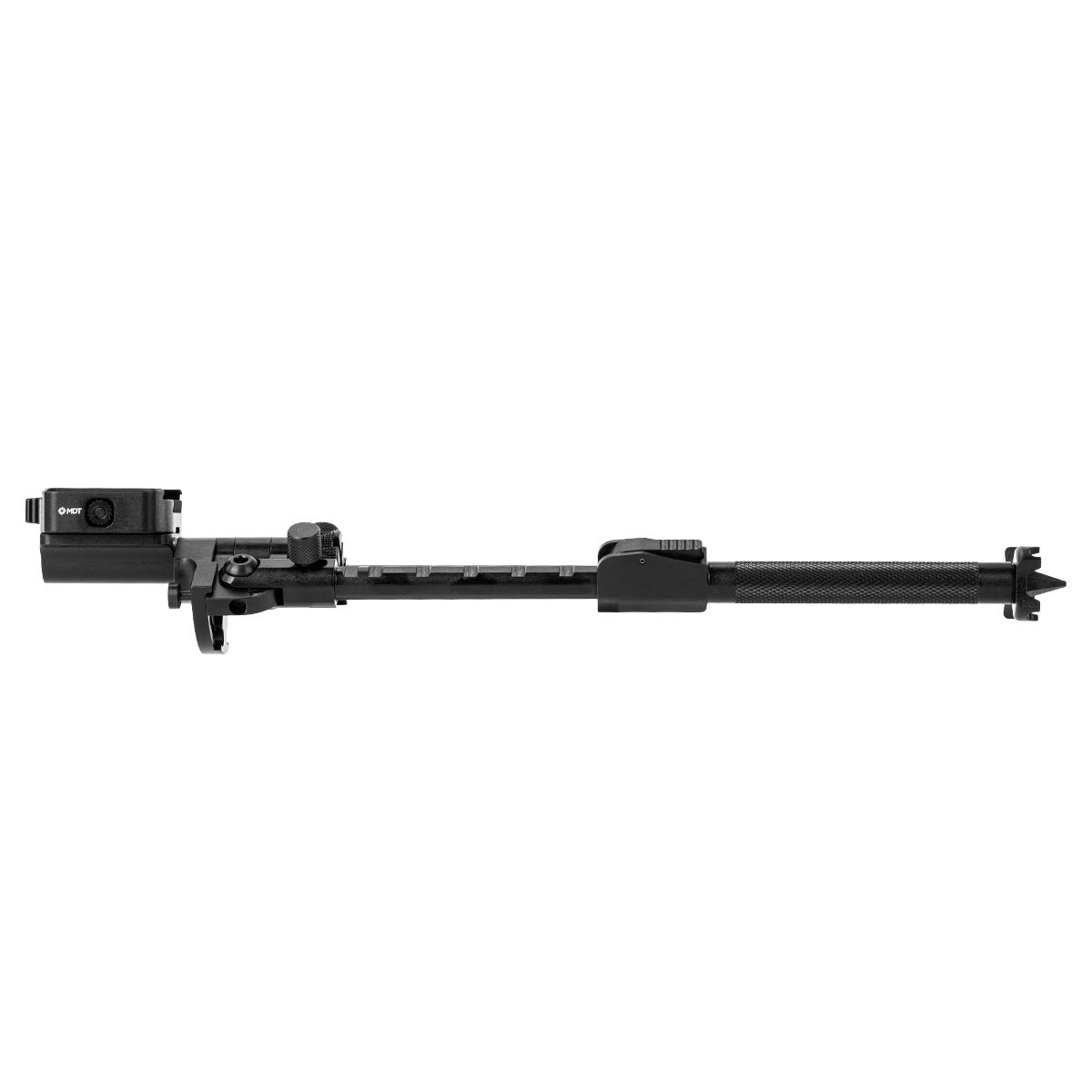

• Stowed Dimensions: 11.79" L × 3.10" W × 2.48" H (legs stowed, middle splay, throw lever forward)
• Height Range: 4.6" – 11.9" (7.3" vertical travel)

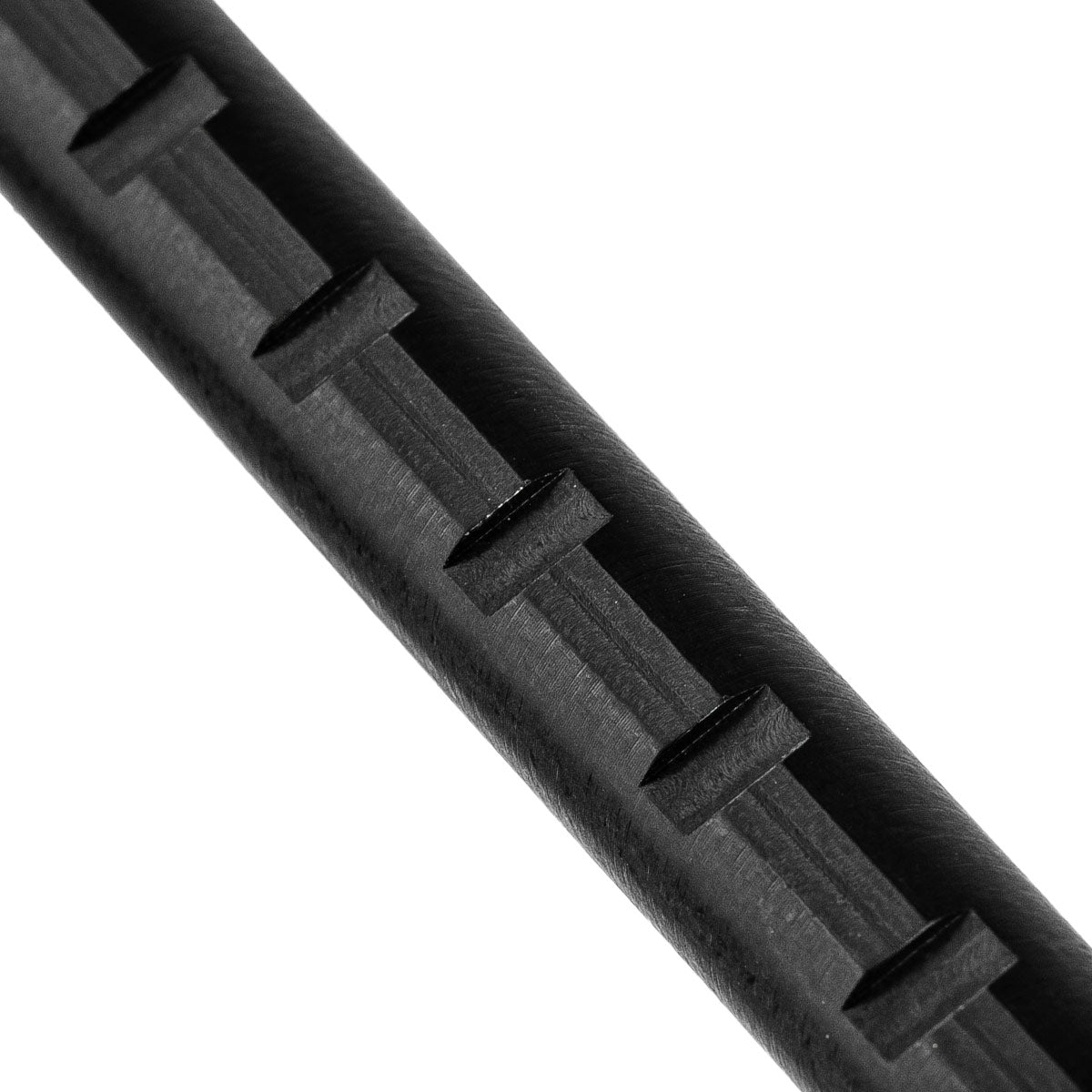

• Leg Extension: 8.17" – 12.01" from the pivot (3.84" of travel)
• Splay: Narrow 53.70° / Middle 91.70° / Wide 129.70°
• Height by Splay: Narrowest 8.36"–11.92" / Middle 6.77"–9.67" / Widest 4.58"–6.50"
• Attachment: ARCA, Picatinny (AP Throw Lever head)
• Materials: Anodized 6061-T6 and 7075 aluminum; black oxide 303, 304, and 17-4PH stainless steel; liquid nitride 4340; brass C36000

For more details, visit MDT CKYE-POD GEN3 - Compact.
